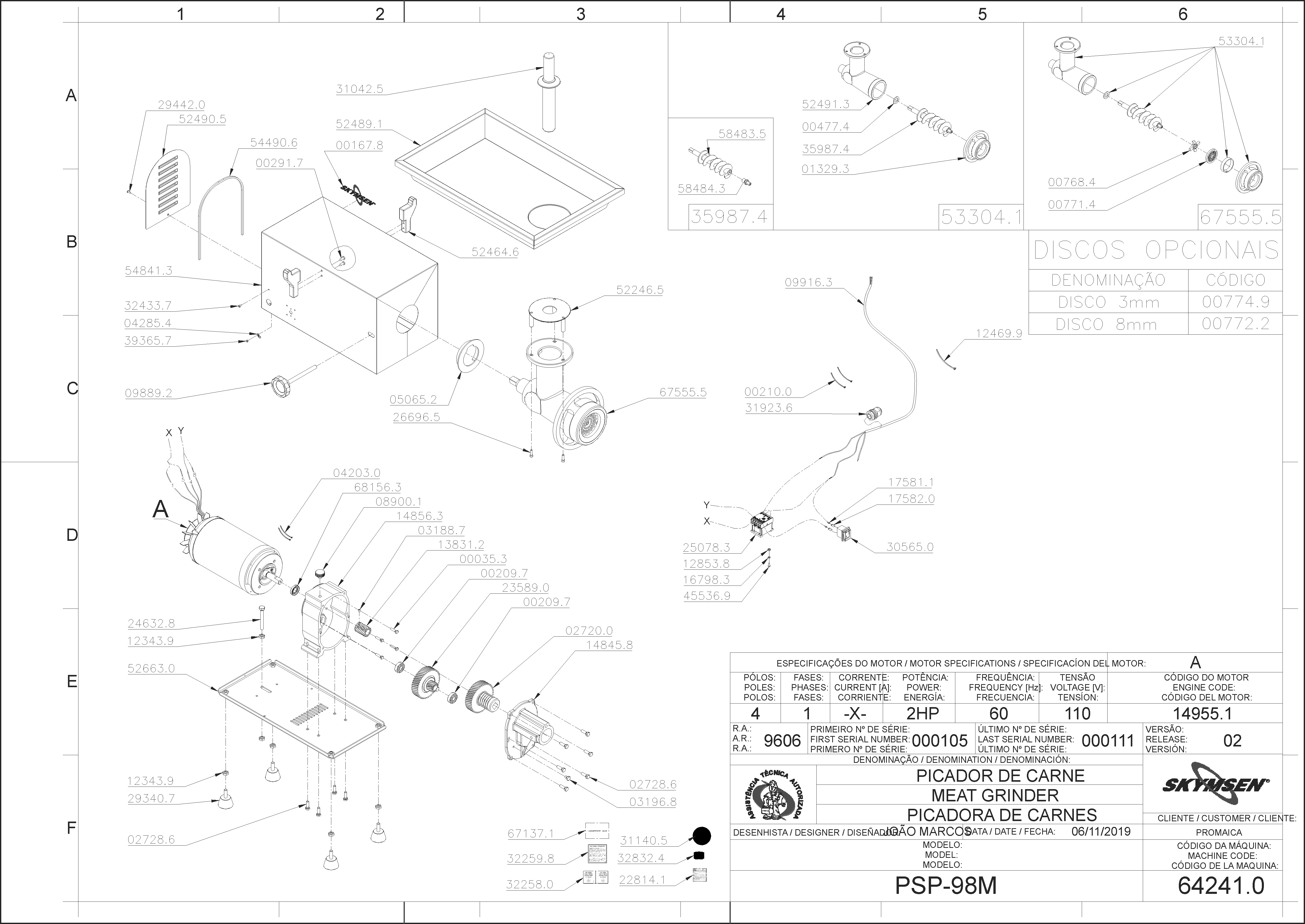

PSP98 M
MEAT GRINDER #98
cod.: 64241.0
- Voltage 110 V
- Motor power 2 HP-CV
- Frequency 60 Hz
Close
Code:
Description:
UM:
Peso Líquido:
HS Code:
Price:
| Code | Description | UM | Peso Líquido |
|---|---|---|
| 00035.3 | PFS SEX UNC1/4"x1" RTZB | PC |
| 00167.8 | LOGOTIPO SKYMSEN 145mm | PC |
| 00209.7 | ROLAMENTO 6202 Di.15xDe.35xL.11 | PC |
| 00210.0 | ABRACADEIRA K22 (T-50R) (MEDIA) | PC |
| 00291.7 | PFS B.6,3x19 DIN 7981 ZB | PC |
| 00477.4 | ARRUELA DE FIBRA No.22/98 | PC |
| 00768.4 | CRUZETA No.98S | PC |
| 00769.2 | CRUZETA DUPLA No.98B | PC |
| 00771.4 | DISCO 5mm No.98 SKYMSEN | PC |
| 00772.2 | DISCO 8mm No.98 SKYMSEN | PC |
| 00774.9 | DISCO 3mm No.98 SKYMSEN | PC |
| 01329.3 | VOLANTE No.98 | PC |
| 01330.7 | ANEL DE ENCOSTO No.98B | PC |
| 01741.8 | RETENTOR NBR 19X35X7 TIPO BR1 | PC |
| 02720.0 | ENGRENAGEM CONDUZIDA Z-48 PSN/EE22/98 | PC |
| 02728.6 | PFS M8x25 DIN 933 ZB | PC |
| 03188.7 | PFS M6X8 DIN 916 INOX | PC |
| 03196.8 | PFS M8x10 DIN 933 ZB | PC |
| 04203.0 | ABRACADEIRA T-18R (PEQUENA) | PC |
| 04285.4 | TERM. PRE-ISOL.AN-2435 | PC |
| 05065.2 | TAMPAO BORRACHA CORTADO (MOLDE 694615 | PC |
| 08900.1 | BUJAO DO OLEO PSEE-10/22 | PC |
| 09197.9 | PFS M5x10 DIN 7985 INOX | PC |
| 09889.2 | MANIPULO C/HASTE M12x135mm | PC |
| 09916.3 | CB.3x4mm2x1800mm A.P.V. | PC |
| 10193.1 | PFS M4x16 DIN 916 INOX | PC |
| 12343.9 | PCA M10 DIN 934 ZB | PC |
| 12350.1 | PCA M10 DIN 934 INOX | PC |
| 12384.6 | PFS M6x12 DIN 933 INOX | PC |
| 12469.9 | ABRACADEIRA K22-LM (T-80I) (MAIOR) | PC |
| 12853.8 | PCA M3 DIN 934 INOX | PC |
| 13480.5 | PFS B.4,2x9,5 DIN 7981 INOX | PC |
| 13831.2 | ENGRENAGEM MOTORA PSEE | PC |
| 14465.7 | PFS M8x25 DIN 933 INOX | PC |
| 14845.8 | TAMPA CXA ENG.(C.MARTEL.)(148458) | PC |
| 14856.3 | CAIXA ENG.C/PINO(C.MARTELADO)(148563) | PC |
| 14955.1 | MOTOR 2CV 60Hz MONOFASICO W | PC |
| 16798.3 | ARR.L.A4,3 DIN 125 INOX | PC |
| 17581.1 | TERM.FEMEA C/TRAVA 1 a 2,5mm2 | PC |
| 17582.0 | CAPA P/TERMINAL FEMEA(175820) | PC |
| 22814.1 | ETIQ.ATENCAO CUIDADO P/I/E | PC |
| 23406.0 | MANIPULO C/HASTE M12x160mm | PC |
| 23589.0 | CONJ.ENG.INTERMEDIARIA | PC |
| 24548.8 | PFS M10x12 DIN 933 ZB | PC |
| 24632.8 | PFS M10x80 DIN 933 ZB | PC |
| 25078.3 | CONT.CWM32-00 110V 50/60Hz | PC |
| 26696.5 | PFS M6x20 DIN 912 INOX | PC |
| 28742.3 |
*The item has been replaced by the number 149543 MOTOR 2CV 50Hz MONOFASICO W |
PC |
| 29340.7 | PE BOR.RED.C/PFS M10x30 D.50x34x30 AL | PC |
| 29442.0 | PFS AUTO BROC.4,2x13 ZB | PC |
| 29718.6 | LOGOTIPO SKYMSEN 20cm | PC |
| 30565.0 | CHAVE 30223 M2FT2FE3V/197 | PC |
| 31042.5 | SOQUETE NO.10/22/98 | PC |
| 31140.5 | ETIQ.SIMBOLOGIA FIO TERRA | PC |
| 31685.7 | PINO ROSCA-SEM-FIM No.98B STD | PC |
| 31686.5 | DISCO PRE-CORT.98B STD | PC |
| 31923.6 | PRENSA CABO PG13,5 LCP13,5BL+PCA C/RE | PC |
| 32258.0 | ETIQ.FIO TERRA E/F/I/P | PC |
| 32259.8 | ETIQ.ATENCAO FIO TERRA | PC |
| 32433.7 | PFS M4x8 DIN 7985 INOX | PC |
| 32832.4 | ETIQ.MANUAL INSTRUCOES(328324) | PC |
| 35987.4 | ROSCA-SEM-FIM C/PINO No.98B CS | PC |
| 39365.7 | PCA M4 DIN 985 ZB | PC |
| 40693.7 | POSTE P/TRILHO IEC 60715 (10289061) | PC |
| 41966.4 | ETIQ.FRAGIL ESPANHOL/INGLES(419664) | PC |
| 42209.6 | PFS M5x20 DIN 916 INOX | PC |
| 43412.4 |
*The item has been replaced by the number 398225 CB.3x1,5mm2 C/PG ANG/JORD |
PC |
| 45536.9 | PFS M3x12 DIN 7985 INOX | PC |
| 48557.8 | CHAVE L/D DUPLO S/LED | PC |
| 50958.2 | ROSCA-SEM-FIM S/PINO No.98B CS | PC |
| 52246.5 | CS PROTECAO DA BOCA | PC |
| 52339.9 | PCA M5 DIN 985 INOX | PC |
| 52464.6 | SUPORTE DA BANDEJA (MOLDE 536989) | PC |
| 52489.1 | BANDEJA(524891) | PC |
| 52490.5 | CHAPA DE FECHAMENTO(524905) | PC |
| 52491.3 | BOCA No.98B LONGA SEG.(524913) | PC |
| 52663.0 | CS BASE (CINZA)(526630) | PC |
| 53303.3 | BOCA COMPLETA No.98B LONGA C/SEG.(533 | PC |
| 53304.1 | CONJUNTO BOCA No.98B LONGA SEG.(53304 | PC |
| 53305.0 | CONJUNTO BOCA No.98S CURTA SEG. | PC |
| 53306.8 | BOCA COMPLETA No.98S CURTA | PC |
| 54490.6 | PERFIL ACABAMENTO 730mm | PC |
| 54601.1 | MINI CONT.CWC012-01-30X32 220V 50Hz | PC |
| 54841.3 | CS GABINETE(548413) | PC |
| 58475.4 | BOCA NO.98 INOX C/BUCHA(584754) | PC |
| 58476.2 | VOLANTE No.98 INOX(584762) | PC |
| 58477.0 | ROSCA-SEM-FIM C/PINO No.98 INOX(58477 | PC |
| 58478.9 | DISCO PRE-CORT.No.98 INOX | PC |
| 58479.7 | FACA CRUZETA DUPLA NO.98 INOX | PC |
| 58480.0 | DISCO 5mm No.98 INOX(584800) | PC |
| 58483.5 | ROSCA-SEM-FIM No.98 INOX | PC |
| 58484.3 | PINO ROSCADO SEM FIM No.98 INOX(58484 | PC |
| 59813.5 | CONJUNTO BOCA No.98 INOX(598135) | PC |
| 59815.1 |
*The item has been replaced by the number |
|
| 64234.7 | ETIQ.INFORMACION DE REPUESTOS | PC |
| 66546.0 | CONECTOR EMENDA WAGO 5x0,25-4mm2 (221 | PC |
| 66735.8 | CONJUNTO BOCA No.98B LONGA SEG.(66735 | PC |
| 66736.6 | BOCA COMPLETA No.98B LONGA SEG. | PC |
| 67137.1 | ETIQUETA FIXACAO BOCA(671371) | PC |
| 67178.9 | CONECTOR EMENDA WAGO 2x0,25-4mm2 (221 | PC |
| 67555.5 | BOCA COMPLETA No.98B LONGA C/SEG.(675 | PC |
| 68156.3 | RETENTOR FPM 19X35X7 TIPO R2 (VITON) | PC |
| 68449.0 | ENGRENAGEM CONDUZIDA Z-48 PS-22/PSP-9 | PC |
| 68459.7 | CONJ.ENG.INTERMEDIARIA PSEE-98M/T | PC |
| 68460.0 | TAMPA CAIXA ENGRENAGENS C/BUCHA PS-98 | PC |
| 68472.4 | BUCHA DA TAMPA PS-22/98 | PC |
| 68476.7 | SUPORTE DO PE(684767) | PC |
| 68477.5 | BASE (CINZA)(684775) | PC |
| 68629.8 | ENGRENAGEM MOTORA Z-15 | PC |
| 69372.7 | CS BANDEJA 98 (BOCAL DIAM.140 MM) | PC |
| 69372.9 | CS ANTEPARO(693729) | PC |
| 69460.6 | BANDEJA 98 (BOCAL DIAM.98 MM) | PC |
| 69474.6 | ANEL O´RING 46,18x40,94x2,62mm | PC |
| 69499.8 | ETIQUETA FIXACAO BOCA(694998) | PC |
| 69506.9 | CS GABINETE(695069) | PC |
| 69542.4 | CS ANTEPARO(695424) | PC |
| 69566.1 |
*The item has been replaced by the number 692752 KIT REPOSICAO BOCA 98 |
PC |
| 69567.0 |
*The item has been replaced by the number 692753 KIT REPOSICAO CONJUNTO DE BOCA 98 |
PC |
| 69569.6 |
*The item has been replaced by the number 692754 KIT REPOSICAO BOCA COMPLETA 98 |
PC |
| 69600.8 | CS BASE (CINZA)(696008) | PC |
| 69601.0 | TAMPA CAIXA ENGRENAGENS C/BUCHA PS-98 | PC |
| 69618.4 | FLANGE DO MANIPULO(MOLDE 695775) | PC |
| 69670.8 | CHICOTE ELETRICO COMPL.PSP-98M(696708 | PC |
| 69765.6 | SUPORTE DA BANDEJA(697656) | PC |
| 70013.7 | CS BANDEJA 98 (BOCAL DIAM.98 MM) | PC |
| 70120.5 | BASE P/CONTATORA 65mm C/FURO | PC |
| 70127.5 | CS GABINETE(701275) | PC |
| 70226.3 | ARRUELA DE ENCOSTO 18x31.75x2.2mm | PC |
| Code | Description | MU | Price |
|---|---|---|---|
| 00035.3 | PFS SEX UNC1/4"x1" RTZB | PC | US$ 0.11 |
| 00167.8 | LOGOTIPO SKYMSEN 145mm | PC | US$ 0.68 |
| 00209.7 | ROLAMENTO 6202 Di.15xDe.35xL.11 | PC | US$ 1.29 |
| 00210.0 | ABRACADEIRA K22 (T-50R) (MEDIA) | PC | US$ 0.06 |
| 00291.7 | PFS B.6,3x19 DIN 7981 ZB | PC | US$ 0.08 |
| 00477.4 | ARRUELA DE FIBRA No.22/98 | PC | US$ 1.00 |
| 00768.4 | CRUZETA No.98S | PC | US$ 23.00 |
| 00769.2 | CRUZETA DUPLA No.98B | PC | US$ 25.00 |
| 00771.4 | DISCO 5mm No.98 SKYMSEN | PC | US$ 14.00 |
| 00772.2 | DISCO 8mm No.98 SKYMSEN | PC | US$ 14.00 |
| 00774.9 | DISCO 3mm No.98 SKYMSEN | PC | US$ 16.00 |
| 01329.3 | VOLANTE No.98 | PC | US$ 55.74 |
| 01330.7 | ANEL DE ENCOSTO No.98B | PC | US$ 11.25 |
| 01741.8 | RETENTOR NBR 19X35X7 TIPO BR1 | PC | US$ 2.12 |
| 02720.0 | ENGRENAGEM CONDUZIDA Z-48 PSN/EE22/98 | PC | US$ 71.55 |
| 02728.6 | PFS M8x25 DIN 933 ZB | PC | US$ 0.18 |
| 03188.7 | PFS M6X8 DIN 916 INOX | PC | US$ 0.18 |
| 03196.8 | PFS M8x10 DIN 933 ZB | PC | US$ 0.14 |
| 04203.0 | ABRACADEIRA T-18R (PEQUENA) | PC | US$ 0.06 |
| 04285.4 | TERM. PRE-ISOL.AN-2435 | PC | US$ 0.19 |
| 05065.2 | TAMPAO BORRACHA CORTADO (MOLDE 694615 | PC | US$ 4.02 |
| 08900.1 | BUJAO DO OLEO PSEE-10/22 | PC | US$ 3.24 |
| 09197.9 | PFS M5x10 DIN 7985 INOX | PC | US$ 0.11 |
| 09889.2 | MANIPULO C/HASTE M12x135mm | PC | US$ 6.04 |
| 09916.3 | CB.3x4mm2x1800mm A.P.V. | PC | US$ 15.61 |
| 10193.1 | PFS M4x16 DIN 916 INOX | PC | US$ 0.09 |
| 12343.9 | PCA M10 DIN 934 ZB | PC | US$ 0.12 |
| 12350.1 | PCA M10 DIN 934 INOX | PC | US$ 0.30 |
| 12384.6 | PFS M6x12 DIN 933 INOX | PC | US$ 0.20 |
| 12469.9 | ABRACADEIRA K22-LM (T-80I) (MAIOR) | PC | US$ 0.07 |
| 12853.8 | PCA M3 DIN 934 INOX | PC | US$ 0.06 |
| 13480.5 | PFS B.4,2x9,5 DIN 7981 INOX | PC | US$ 0.06 |
| 13831.2 | ENGRENAGEM MOTORA PSEE | PC | US$ 16.62 |
| 14465.7 | PFS M8x25 DIN 933 INOX | PC | US$ 0.33 |
| 14845.8 | TAMPA CXA ENG.(C.MARTEL.)(148458) | PC | US$ 74.05 |
| 14856.3 | CAIXA ENG.C/PINO(C.MARTELADO)(148563) | PC | US$ 98.53 |
| 14955.1 | MOTOR 2CV 60Hz MONOFASICO W | PC | US$ 465.33 |
| 16798.3 | ARR.L.A4,3 DIN 125 INOX | PC | US$ 0.06 |
| 17581.1 | TERM.FEMEA C/TRAVA 1 a 2,5mm2 | PC | US$ 0.19 |
| 17582.0 | CAPA P/TERMINAL FEMEA(175820) | PC | US$ 0.08 |
| 22814.1 | ETIQ.ATENCAO CUIDADO P/I/E | PC | US$ 1.64 |
| 23406.0 | MANIPULO C/HASTE M12x160mm | PC | US$ 4.96 |
| 23589.0 | CONJ.ENG.INTERMEDIARIA | PC | US$ 74.91 |
| 24548.8 | PFS M10x12 DIN 933 ZB | PC | US$ 0.35 |
| 24632.8 | PFS M10x80 DIN 933 ZB | PC | US$ 0.74 |
| 25078.3 | CONT.CWM32-00 110V 50/60Hz | PC | US$ 93.71 |
| 26696.5 | PFS M6x20 DIN 912 INOX | PC | US$ 0.21 |
| 28742.3 |
*The item has been replaced by the number 149543 MOTOR 2CV 50Hz MONOFASICO W |
PC | |
| 29340.7 | PE BOR.RED.C/PFS M10x30 D.50x34x30 AL | PC | US$ 2.57 |
| 29442.0 | PFS AUTO BROC.4,2x13 ZB | PC | US$ 0.06 |
| 29718.6 | LOGOTIPO SKYMSEN 20cm | PC | US$ 1.28 |
| 30565.0 | CHAVE 30223 M2FT2FE3V/197 | PC | US$ 2.15 |
| 31042.5 | SOQUETE NO.10/22/98 | PC | US$ 7.12 |
| 31140.5 | ETIQ.SIMBOLOGIA FIO TERRA | PC | US$ 0.11 |
| 31685.7 | PINO ROSCA-SEM-FIM No.98B STD | PC | US$ 12.22 |
| 31686.5 | DISCO PRE-CORT.98B STD | PC | US$ 24.00 |
| 31923.6 | PRENSA CABO PG13,5 LCP13,5BL+PCA C/RE | PC | US$ 3.01 |
| 32258.0 | ETIQ.FIO TERRA E/F/I/P | PC | US$ 0.21 |
| 32259.8 | ETIQ.ATENCAO FIO TERRA | PC | US$ 0.08 |
| 32433.7 | PFS M4x8 DIN 7985 INOX | PC | US$ 0.07 |
| 32832.4 | ETIQ.MANUAL INSTRUCOES(328324) | PC | US$ 0.36 |
| 35987.4 | ROSCA-SEM-FIM C/PINO No.98B CS | PC | US$ 86.81 |
| 39365.7 | PCA M4 DIN 985 ZB | PC | US$ 0.06 |
| 40693.7 | POSTE P/TRILHO IEC 60715 (10289061) | PC | US$ 0.59 |
| 41966.4 | ETIQ.FRAGIL ESPANHOL/INGLES(419664) | PC | US$ 0.55 |
| 42209.6 | PFS M5x20 DIN 916 INOX | PC | US$ 0.25 |
| 43412.4 |
*The item has been replaced by the number 398225 CB.3x1,5mm2 C/PG ANG/JORD |
PC | |
| 45536.9 | PFS M3x12 DIN 7985 INOX | PC | US$ 0.06 |
| 48557.8 | CHAVE L/D DUPLO S/LED | PC | US$ 11.72 |
| 50958.2 | ROSCA-SEM-FIM S/PINO No.98B CS | PC | US$ 81.17 |
| 52246.5 | CS PROTECAO DA BOCA | PC | US$ 44.07 |
| 52339.9 | PCA M5 DIN 985 INOX | PC | US$ 0.06 |
| 52464.6 | SUPORTE DA BANDEJA (MOLDE 536989) | PC | US$ 3.30 |
| 52489.1 | BANDEJA(524891) | PC | US$ 178.51 |
| 52490.5 | CHAPA DE FECHAMENTO(524905) | PC | US$ 7.96 |
| 52491.3 | BOCA No.98B LONGA SEG.(524913) | PC | US$ 209.84 |
| 52663.0 | CS BASE (CINZA)(526630) | PC | US$ 52.95 |
| 53303.3 | BOCA COMPLETA No.98B LONGA C/SEG.(533 | PC | US$ 390.67 |
| 53304.1 | CONJUNTO BOCA No.98B LONGA SEG.(53304 | PC | US$ 324.65 |
| 53305.0 | CONJUNTO BOCA No.98S CURTA SEG. | PC | US$ 367.92 |
| 53306.8 | BOCA COMPLETA No.98S CURTA | PC | US$ 403.13 |
| 54490.6 | PERFIL ACABAMENTO 730mm | PC | US$ 4.12 |
| 54601.1 | MINI CONT.CWC012-01-30X32 220V 50Hz | PC | US$ 37.17 |
| 54841.3 | CS GABINETE(548413) | PC | US$ 80.79 |
| 58475.4 | BOCA NO.98 INOX C/BUCHA(584754) | PC | US$ 432.01 |
| 58476.2 | VOLANTE No.98 INOX(584762) | PC | US$ 102.00 |
| 58477.0 | ROSCA-SEM-FIM C/PINO No.98 INOX(58477 | PC | US$ 219.30 |
| 58478.9 | DISCO PRE-CORT.No.98 INOX | PC | US$ 20.00 |
| 58479.7 | FACA CRUZETA DUPLA NO.98 INOX | PC | US$ 24.00 |
| 58480.0 | DISCO 5mm No.98 INOX(584800) | PC | US$ 25.00 |
| 58483.5 | ROSCA-SEM-FIM No.98 INOX | PC | US$ 192.31 |
| 58484.3 | PINO ROSCADO SEM FIM No.98 INOX(58484 | PC | US$ 23.64 |
| 59813.5 | CONJUNTO BOCA No.98 INOX(598135) | PC | US$ 754.00 |
| 59815.1 |
*The item has been replaced by the number |
||
| 64234.7 | ETIQ.INFORMACION DE REPUESTOS | PC | US$ 0.25 |
| 66546.0 | CONECTOR EMENDA WAGO 5x0,25-4mm2 (221 | PC | US$ 1.44 |
| 66735.8 | CONJUNTO BOCA No.98B LONGA SEG.(66735 | PC | US$ 360.97 |
| 66736.6 | BOCA COMPLETA No.98B LONGA SEG. | PC | US$ 396.19 |
| 67137.1 | ETIQUETA FIXACAO BOCA(671371) | PC | US$ 0.44 |
| 67178.9 | CONECTOR EMENDA WAGO 2x0,25-4mm2 (221 | PC | US$ 0.65 |
| 67555.5 | BOCA COMPLETA No.98B LONGA C/SEG.(675 | PC | US$ 361.55 |
| 68156.3 | RETENTOR FPM 19X35X7 TIPO R2 (VITON) | PC | US$ 5.44 |
| 68449.0 | ENGRENAGEM CONDUZIDA Z-48 PS-22/PSP-9 | PC | US$ 71.55 |
| 68459.7 | CONJ.ENG.INTERMEDIARIA PSEE-98M/T | PC | US$ 74.91 |
| 68460.0 | TAMPA CAIXA ENGRENAGENS C/BUCHA PS-98 | PC | US$ 124.25 |
| 68472.4 | BUCHA DA TAMPA PS-22/98 | PC | US$ 41.20 |
| 68476.7 | SUPORTE DO PE(684767) | PC | US$ 11.49 |
| 68477.5 | BASE (CINZA)(684775) | PC | US$ 51.80 |
| 68629.8 | ENGRENAGEM MOTORA Z-15 | PC | US$ 16.62 |
| 69372.7 | CS BANDEJA 98 (BOCAL DIAM.140 MM) | PC | US$ 65.46 |
| 69372.9 | CS ANTEPARO(693729) | PC | US$ 41.55 |
| 69460.6 | BANDEJA 98 (BOCAL DIAM.98 MM) | PC | US$ 61.65 |
| 69474.6 | ANEL O´RING 46,18x40,94x2,62mm | PC | US$ 0.28 |
| 69499.8 | ETIQUETA FIXACAO BOCA(694998) | PC | US$ 0.96 |
| 69506.9 | CS GABINETE(695069) | PC | US$ 95.38 |
| 69542.4 | CS ANTEPARO(695424) | PC | US$ 36.47 |
| 69566.1 |
*The item has been replaced by the number 692752 KIT REPOSICAO BOCA 98 |
PC | |
| 69567.0 |
*The item has been replaced by the number 692753 KIT REPOSICAO CONJUNTO DE BOCA 98 |
PC | |
| 69569.6 |
*The item has been replaced by the number 692754 KIT REPOSICAO BOCA COMPLETA 98 |
PC | |
| 69600.8 | CS BASE (CINZA)(696008) | PC | US$ 64.39 |
| 69601.0 | TAMPA CAIXA ENGRENAGENS C/BUCHA PS-98 | PC | US$ 129.38 |
| 69618.4 | FLANGE DO MANIPULO(MOLDE 695775) | PC | US$ 3.61 |
| 69670.8 | CHICOTE ELETRICO COMPL.PSP-98M(696708 | PC | US$ 18.33 |
| 69765.6 | SUPORTE DA BANDEJA(697656) | PC | US$ 13.16 |
| 70013.7 | CS BANDEJA 98 (BOCAL DIAM.98 MM) | PC | US$ 65.46 |
| 70120.5 | BASE P/CONTATORA 65mm C/FURO | PC | US$ 0.96 |
| 70127.5 | CS GABINETE(701275) | PC | US$ 98.08 |
| 70226.3 | ARRUELA DE ENCOSTO 18x31.75x2.2mm | PC | US$ 7.37 |
