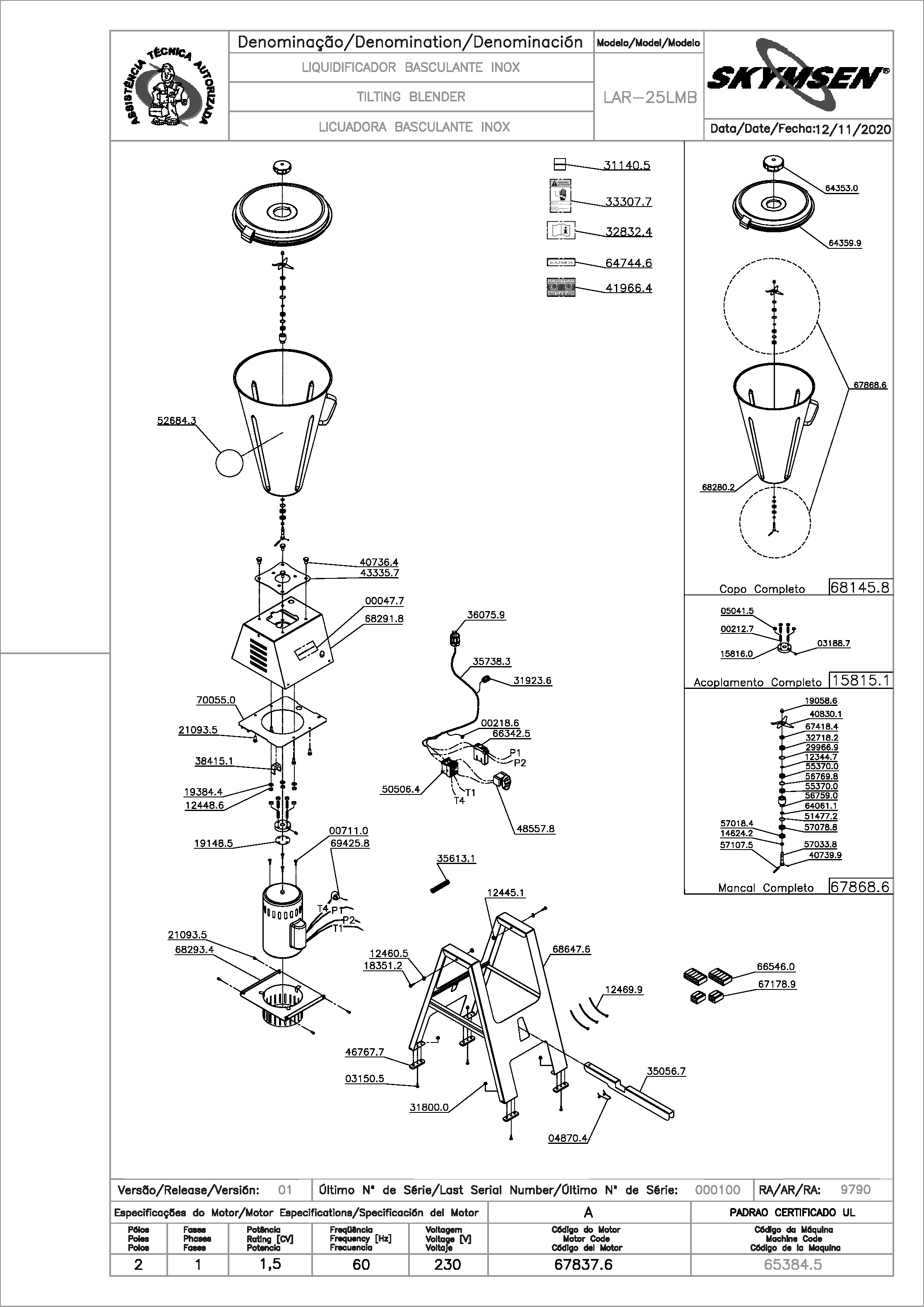

LAR-25LMB
cod.: 65384.5
- Voltage 230 V
- Motor power HP(kW) 1,5(1,1)
- Frequency 60 Hz
Close
Code:
Description:
UM:
Peso Líquido:
HS Code:
Price:
| Code | Description | UM | Peso Líquido |
|---|---|---|
| 00047.7 | LOGOTIPO SKYMSEN 120mm | PC |
| 00212.7 | PINO ELAST.6x22 DIN 1481 | PC |
| 00218.6 | PASSADOR FIO (MOLDE 092231) | PC |
| 00711.0 | PFS SEX UNC3/8"x7/8" RTZB | PC |
| 01137.1 | TERM. OLHAL | PC |
| 03188.7 | PFS M6X8 DIN 916 INOX | PC |
| 04870.4 | MOLA DO BASCULANTE(048704) | PC |
| 05041.5 | REVESTIMENTO PINO FLANGE (MOLDE 69467 | PC |
| 09205.3 | PCA M4 DIN 934 INOX | PC |
| 10975.4 | PASSADOR FIO GR. 15x23,7mm | PC |
| 12344.7 | ANEL 12x1 DIN 471 | PC |
| 12441.9 | PCA M6 DIN 985 INOX | PC |
| 12442.7 | ARR.L.A6,4 DIN 125 INOX | PC |
| 12445.1 | PCA M8 DIN 934 INOX | PC |
| 12448.6 | PCA M6 DIN 934 INOX | PC |
| 12460.5 | ARR.L.A8,4 DIN 125 INOX | PC |
| 12469.9 | ABRACADEIRA K22-LM (T-80I) (MAIOR) | PC |
| 14624.2 | ANEL VRING 16,5X11X5,5 (MOLDE 694620) | PC |
| 14654.4 | ARRUELA FIBRA 0.6x13x23mm | PC |
| 14660.9 | PCA ACAB.M10x1,25 RE INOX | PC |
| 15815.1 | ACOPLAMENTO COMPL. - LB | PC |
| 15816.0 |
*The item has been replaced by the number 158151 ACOPLAMENTO COMPL. - LB |
PC |
| 17207.3 | PFS M8x60 DIN 933 INOX | PC |
| 17898.5 | CB.3x1,0mm2 C/PLUG 2PC1PR | PC |
| 18351.2 | PFS M8x40 DIN 933 INOX | PC |
| 19058.6 |
*The item has been replaced by the number 146609 PCA ACAB.M10x1,25 RE INOX |
PC |
| 19148.5 | DEFLETORA(191485) | PC |
| 19384.4 | ARR.L 1/4x5/8x1,2mm INOX | PC |
| 21093.5 | PFS M5x12 DIN 933 INOX | PC |
| 23739.6 | PFS M4x10 DIN 933 INOX | PC |
| 29966.9 | ANEL 28x1,2 DIN 472 FOSF. | PC |
| 31140.5 | ETIQ.SIMBOLOGIA FIO TERRA | PC |
| 31800.0 | PCA M4 DIN 985 INOX | PC |
| 31923.6 | PRENSA CABO PG13,5 LCP13,5BL+PCA C/RE | PC |
| 32718.2 | RETENTOR DI.12XDE.22XL.5 22501 (VITON | PC |
| 32832.4 | ETIQ.MANUAL INSTRUCOES(328324) | PC |
| 33307.7 | ETIQ.WARNING INGL./FRANC. | PC |
| 35056.7 |
*The item has been replaced by the number 702346 PEDAL(702346) |
PC |
| 35613.1 | PROTECAO DOS FIOS 280mm | PC |
| 35738.3 | CB.3x2,1mm2 SJx2m CERTIF. | PC |
| 36075.9 | PLUG AMER.CERT.20A (1X991) | PC |
| 37843.7 | PLUG AMER.CERT.30A(125V) | PC |
| 38415.1 | SUPORTE DO CAPACITOR 60Hz | PC |
| 40693.7 | POSTE P/TRILHO IEC 60715 (10289061) | PC |
| 40736.4 | PFS M8x12 DIN 933 INOX | PC |
| 40739.9 | PFS M5x8 DIN 916 INOX | PC |
| 40830.1 | CS HELICE TIPO MB | PC |
| 41966.4 | ETIQ.FRAGIL ESPANHOL/INGLES(419664) | PC |
| 43335.7 | CHAPA BASE DO COPO MB(433357) | PC |
| 46767.7 | PE RETANGULAR (MOLDE 483753) | PC |
| 48557.8 | CHAVE L/D DUPLO S/LED | PC |
| 50506.4 | MINI CONT.CWC012-01-30X26 220V 60Hz | PC |
| 51477.2 | ANEL O´RING 27,6x25x1,3mm | PC |
| 52684.3 | ETIQ.E/I COPO MB 145mm 25 | PC |
| 55370.0 | ROLAMENTO 6001 DDU NSK/TK Di.12xDe.28 | PC |
| 56759.0 |
*The item has been replaced by the number 698336 MANCAL CENTRAL(698336) |
PC |
| 56769.8 | ARRUELA DISTANCIADORA 23.5x27.5x2mm | PC |
| 57018.4 | PCA SEX BAIXA M24x1,5 INOX | PC |
| 57033.8 | EIXO CENTRAL LAR-15/25MB(570338) | PC |
| 57078.8 | DISTANCIADOR(570788) | PC |
| 57107.5 | PINO GUIA 6x50 DIN 7 m6 C/REBAIXO | PC |
| 64061.1 | ANEL DE ENCOSTO(640611) | PC |
| 64353.0 | SOBRETAMPA MB MENOR (MOLDE 644838) | PC |
| 64359.9 | TAMPA 25 (FE006-112)(MOLDE 425303) | PC |
| 64744.6 | ETIQ.DO NOT RUN DRY | PC |
| 66342.5 | RELE RPW PTCE05 24-240V 50/60Hz DC (1 | PC |
| 66546.0 | CONECTOR EMENDA WAGO 5x0,25-4mm2 (221 | PC |
| 67178.9 | CONECTOR EMENDA WAGO 2x0,25-4mm2 (221 | PC |
| 67418.4 |
*The item has been replaced by the number 698268 MANCAL + ANEIS (RASPADOR/VEDACAO) + R |
PC |
| 67837.6 | MOTOR 1,5CV 60Hz 230V W (15089408) | PC |
| 67868.6 |
*The item has been replaced by the number 698335 MANCAL CENTRAL COM ROLAMENTOS DE INOX |
PC |
| 68145.8 | COPO COMPLETO LAR-25MB(681458) | PC |
| 68280.2 | CS COPO LAR-25MB(682802) | PC |
| 68291.8 | CS SUPORTE BASCULANTE INOX(682918) | PC |
| 68293.4 | CS FECHAMENTO GABINETE(682934) | PC |
| 68647.6 | CS CAVALETE(686476) | PC |
| 69425.8 | PROTETOR TERMICO 14602422 | PC |
| 69451.0 | ROLAMENTO 6001 DDU INOX DI.12XDE.28XL | PC |
| 69563.1 | CS FECHAMENTO GABINETE(695631) | PC |
| 69626.7 | ANEL ORING 30,31X25,07X2,62MM | PC |
| 69790.0 | ETIQUETA TAMPA LIQ. EUA | PC |
| 69826.8 | MANCAL + ANEIS (RASPADOR/VEDACAO) + R | PC |
| 69833.5 | MANCAL CENTRAL COM ROLAMENTOS DE INOX | PC |
| 69894.0 | TAMPA 25 (FE006-112) PRETA UL (MOLDE | PC |
| 70055.0 | CS CHAPA DE ESPELHO(700550) | PC |
| 70111.8 | CHICOTE ELETRICO COMPL.LAR-25LMB 230V | PC |
| 70136.7 | SOBRETAMPA MB MENOR (CERTIFICADA) | PC |
| 70195.1 | CS CHAPA DE ESPELHO(701951) | PC |
| 70197.8 | DISJUNTOR CERTIF. UL 12A 125/250Vac ( | PC |
| 70234.6 | PEDAL(702346) | PC |
| 70270.6 | SUPORTE DO CAPACITOR USINADO(702706) | PC |
| Code | Description | MU | Price |
|---|---|---|---|
| 00047.7 | LOGOTIPO SKYMSEN 120mm | PC | US$ 0.51 |
| 00212.7 | PINO ELAST.6x22 DIN 1481 | PC | US$ 0.18 |
| 00218.6 | PASSADOR FIO (MOLDE 092231) | PC | US$ 0.19 |
| 00711.0 | PFS SEX UNC3/8"x7/8" RTZB | PC | US$ 0.17 |
| 01137.1 | TERM. OLHAL | PC | US$ 0.25 |
| 03188.7 | PFS M6X8 DIN 916 INOX | PC | US$ 0.18 |
| 04870.4 | MOLA DO BASCULANTE(048704) | PC | US$ 1.02 |
| 05041.5 | REVESTIMENTO PINO FLANGE (MOLDE 69467 | PC | US$ 0.20 |
| 09205.3 | PCA M4 DIN 934 INOX | PC | US$ 0.06 |
| 10975.4 | PASSADOR FIO GR. 15x23,7mm | PC | US$ 0.28 |
| 12344.7 | ANEL 12x1 DIN 471 | PC | US$ 0.07 |
| 12441.9 | PCA M6 DIN 985 INOX | PC | US$ 0.09 |
| 12442.7 | ARR.L.A6,4 DIN 125 INOX | PC | US$ 0.06 |
| 12445.1 | PCA M8 DIN 934 INOX | PC | US$ 0.11 |
| 12448.6 | PCA M6 DIN 934 INOX | PC | US$ 0.06 |
| 12460.5 | ARR.L.A8,4 DIN 125 INOX | PC | US$ 0.06 |
| 12469.9 | ABRACADEIRA K22-LM (T-80I) (MAIOR) | PC | US$ 0.07 |
| 14624.2 | ANEL VRING 16,5X11X5,5 (MOLDE 694620) | PC | US$ 0.26 |
| 14654.4 | ARRUELA FIBRA 0.6x13x23mm | PC | US$ 0.12 |
| 14660.9 | PCA ACAB.M10x1,25 RE INOX | PC | US$ 1.35 |
| 15815.1 | ACOPLAMENTO COMPL. - LB | PC | US$ 7.59 |
| 15816.0 |
*The item has been replaced by the number 158151 ACOPLAMENTO COMPL. - LB |
PC | |
| 17207.3 | PFS M8x60 DIN 933 INOX | PC | US$ 0.71 |
| 17898.5 | CB.3x1,0mm2 C/PLUG 2PC1PR | PC | US$ 4.43 |
| 18351.2 | PFS M8x40 DIN 933 INOX | PC | US$ 0.66 |
| 19058.6 |
*The item has been replaced by the number 146609 PCA ACAB.M10x1,25 RE INOX |
PC | |
| 19148.5 | DEFLETORA(191485) | PC | US$ 0.90 |
| 19384.4 | ARR.L 1/4x5/8x1,2mm INOX | PC | US$ 0.08 |
| 21093.5 | PFS M5x12 DIN 933 INOX | PC | US$ 0.11 |
| 23739.6 | PFS M4x10 DIN 933 INOX | PC | US$ 0.06 |
| 29966.9 | ANEL 28x1,2 DIN 472 FOSF. | PC | US$ 0.21 |
| 31140.5 | ETIQ.SIMBOLOGIA FIO TERRA | PC | US$ 0.11 |
| 31800.0 | PCA M4 DIN 985 INOX | PC | US$ 0.09 |
| 31923.6 | PRENSA CABO PG13,5 LCP13,5BL+PCA C/RE | PC | US$ 3.01 |
| 32718.2 | RETENTOR DI.12XDE.22XL.5 22501 (VITON | PC | US$ 3.55 |
| 32832.4 | ETIQ.MANUAL INSTRUCOES(328324) | PC | US$ 0.36 |
| 33307.7 | ETIQ.WARNING INGL./FRANC. | PC | US$ 0.62 |
| 35056.7 |
*The item has been replaced by the number 702346 PEDAL(702346) |
PC | |
| 35613.1 | PROTECAO DOS FIOS 280mm | PC | US$ 1.35 |
| 35738.3 | CB.3x2,1mm2 SJx2m CERTIF. | PC | US$ 25.88 |
| 36075.9 | PLUG AMER.CERT.20A (1X991) | PC | US$ 211.11 |
| 37843.7 | PLUG AMER.CERT.30A(125V) | PC | US$ 294.39 |
| 38415.1 | SUPORTE DO CAPACITOR 60Hz | PC | US$ 5.16 |
| 40693.7 | POSTE P/TRILHO IEC 60715 (10289061) | PC | US$ 0.59 |
| 40736.4 | PFS M8x12 DIN 933 INOX | PC | US$ 0.22 |
| 40739.9 | PFS M5x8 DIN 916 INOX | PC | US$ 0.11 |
| 40830.1 | CS HELICE TIPO MB | PC | US$ 5.12 |
| 41966.4 | ETIQ.FRAGIL ESPANHOL/INGLES(419664) | PC | US$ 0.55 |
| 43335.7 | CHAPA BASE DO COPO MB(433357) | PC | US$ 6.55 |
| 46767.7 | PE RETANGULAR (MOLDE 483753) | PC | US$ 0.38 |
| 48557.8 | CHAVE L/D DUPLO S/LED | PC | US$ 11.72 |
| 50506.4 | MINI CONT.CWC012-01-30X26 220V 60Hz | PC | US$ 36.14 |
| 51477.2 | ANEL O´RING 27,6x25x1,3mm | PC | US$ 0.42 |
| 52684.3 | ETIQ.E/I COPO MB 145mm 25 | PC | US$ 0.91 |
| 55370.0 | ROLAMENTO 6001 DDU NSK/TK Di.12xDe.28 | PC | US$ 1.14 |
| 56759.0 |
*The item has been replaced by the number 698336 MANCAL CENTRAL(698336) |
PC | |
| 56769.8 | ARRUELA DISTANCIADORA 23.5x27.5x2mm | PC | US$ 0.79 |
| 57018.4 | PCA SEX BAIXA M24x1,5 INOX | PC | US$ 3.35 |
| 57033.8 | EIXO CENTRAL LAR-15/25MB(570338) | PC | US$ 11.65 |
| 57078.8 | DISTANCIADOR(570788) | PC | US$ 4.36 |
| 57107.5 | PINO GUIA 6x50 DIN 7 m6 C/REBAIXO | PC | US$ 2.16 |
| 64061.1 | ANEL DE ENCOSTO(640611) | PC | US$ 1.81 |
| 64353.0 | SOBRETAMPA MB MENOR (MOLDE 644838) | PC | US$ 1.19 |
| 64359.9 | TAMPA 25 (FE006-112)(MOLDE 425303) | PC | US$ 10.85 |
| 64744.6 | ETIQ.DO NOT RUN DRY | PC | US$ 0.29 |
| 66342.5 | RELE RPW PTCE05 24-240V 50/60Hz DC (1 | PC | US$ 50.75 |
| 66546.0 | CONECTOR EMENDA WAGO 5x0,25-4mm2 (221 | PC | US$ 1.44 |
| 67178.9 | CONECTOR EMENDA WAGO 2x0,25-4mm2 (221 | PC | US$ 0.65 |
| 67418.4 |
*The item has been replaced by the number 698268 MANCAL + ANEIS (RASPADOR/VEDACAO) + R |
PC | |
| 67837.6 | MOTOR 1,5CV 60Hz 230V W (15089408) | PC | US$ 241.29 |
| 67868.6 |
*The item has been replaced by the number 698335 MANCAL CENTRAL COM ROLAMENTOS DE INOX |
PC | |
| 68145.8 | COPO COMPLETO LAR-25MB(681458) | PC | US$ 245.94 |
| 68280.2 | CS COPO LAR-25MB(682802) | PC | US$ 83.34 |
| 68291.8 | CS SUPORTE BASCULANTE INOX(682918) | PC | US$ 139.96 |
| 68293.4 | CS FECHAMENTO GABINETE(682934) | PC | US$ 55.79 |
| 68647.6 | CS CAVALETE(686476) | PC | US$ 143.90 |
| 69425.8 | PROTETOR TERMICO 14602422 | PC | US$ 17.25 |
| 69451.0 | ROLAMENTO 6001 DDU INOX DI.12XDE.28XL | PC | US$ 9.39 |
| 69563.1 | CS FECHAMENTO GABINETE(695631) | PC | US$ 68.80 |
| 69626.7 | ANEL ORING 30,31X25,07X2,62MM | PC | US$ 0.18 |
| 69790.0 | ETIQUETA TAMPA LIQ. EUA | PC | US$ 0.30 |
| 69826.8 | MANCAL + ANEIS (RASPADOR/VEDACAO) + R | PC | US$ 29.46 |
| 69833.5 | MANCAL CENTRAL COM ROLAMENTOS DE INOX | PC | US$ 68.10 |
| 69894.0 | TAMPA 25 (FE006-112) PRETA UL (MOLDE | PC | US$ 49.80 |
| 70055.0 | CS CHAPA DE ESPELHO(700550) | PC | US$ 13.98 |
| 70111.8 | CHICOTE ELETRICO COMPL.LAR-25LMB 230V | PC | US$ 25.89 |
| 70136.7 | SOBRETAMPA MB MENOR (CERTIFICADA) | PC | US$ 1.89 |
| 70195.1 | CS CHAPA DE ESPELHO(701951) | PC | US$ 11.26 |
| 70197.8 | DISJUNTOR CERTIF. UL 12A 125/250Vac ( | PC | US$ 4.94 |
| 70234.6 | PEDAL(702346) | PC | US$ 11.66 |
| 70270.6 | SUPORTE DO CAPACITOR USINADO(702706) | PC | US$ 9.30 |
